1200 series tubular Tbases.

Tbases have been around for so many years that they are considered an industry standard, almost a commodity. You can find many places to purchase them online, "click here to buy" they say. But what are you getting? What are they made of? Where are they made?    IS THAT ALL THERE IS?

We at Soren Holm Incorporated consider them to be anything but a commodity. Every base is manufactured to your specific needs with an option list to satisfy almost every requirement.

click here for top size/base size lookup

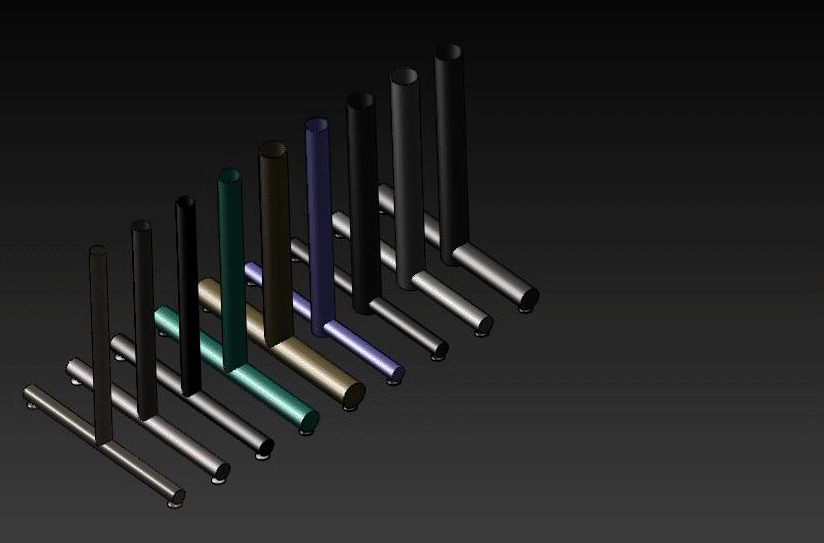

Round tube Tbases, table legs, desk legs
1208 3" diameter 14ga column & 2-1/2" dia 14ga legs
1207 3" diameter 14ga column & 2" diameter 14ga legs
1206 3" diameter 14ga column & 1-3/4" diameter 14ga legs
1205 2-1/2" diameter 14ga column & 1-3/4" diameter 14ga legs
1204 3" diameter 14ga column & leg
1203 2-1/2" diameter 14ga column & leg
1202L 2" diameter 16ga column & leg
1202 2" diameter 14ga column & leg
1201 1-3/4" diameter 14ga column & leg

Standard Details

1202A Series, column offset to 1/3, tube 2" dial 14ga. Plate welded offset or corner mount LH/RH optional.

Welded end caps.

Brazed connections with nickel-silver alloy. No assembly required here.

Refined details.

Laser cut mounting plates welded. No assembly required. Perfect for CNC drilled tops.

1-5/8" diameter glide, 5/16"-18 x 1-1/4" threaded stem.

Welded end caps
Welded end caps

Chrome table legs, metal Tbases, metal table legs

Welded table legs, Tbases
Welded table legs, Tbases

Steel table legs, metal Tbases, metal furniture legs

Powdercoated metal table legs
Powdercoated metal table legs

Metal Tbases, metal table legs, welded metal table legs

Laser cut mounting plates
Laser cut mounting plates

all Welded table bases, welded table legs

Adjustable table levelers
Adjustable table levelers

Adjustable glides, adjustable table levelers

Optional Details

SG4
SG3
BN
CS1
CS2
E
Plate stiffening gussets
Plate stiffening gussets

Welded plate stiffening gussets, heavy duty mounting plates

Plate stiffening gussets
Plate stiffening gussets

Welded plate stiffening gussets, heavy duty mounting plates

Welded bull nose end caps
Welded bull nose end caps

Welded bull nose end caps

Locking furniture casters
Locking furniture casters

Dual wheel black casters, locking & non-locking

Offset welded top mounting plates
Offset welded top mounting plates

End base offset welded top mounting plates

Edge Mounted Plate

welded



Stiffening Gussets 4 Way, welded



Stiffening Gussets 3 Way, welded



Bullnosed End

caps welded



 locking/non-locking Office casters

2" Diameter





P
T516
T375
CS3
CS4
GL05
SHOX

Mask off column & paint plate.



5/16" or 3/8"

Threaded ferrules welded



1-1/4"  nickel plated glide, 5/16"-18 x 1" threaded stem.



Painted mounting plates optional
Painted mounting plates optional

Finished look under the table, painted mounting plates optional.

Heavy duty threads for casters etc
Heavy duty threads for casters etc

Optional threaded ferrules welded for casters and heavy duty applications

Industrial casters
Industrial casters

Locking & non-locking industrial casters

Optional chrome glides
Optional chrome glides

Optional adjustable chrome glides with silencer

Self leveling glides
Self leveling glides

Table Shox self leveling glides

locking/non-locking Industrial casters

2" diameter



Table  SHOX

auto leveling



Flip top table mechanism
Flip top table mechanism

Flip top mechanism

Flip top table mechanism anti-tip
Flip top table mechanism anti-tip

Flip top table leg mechanism with anti tip device, heavy duty

Flip top mechanism with stiffener pl
Flip top mechanism with stiffener pl

Heavy duty flip top table mechanism for large tops

Heavy duty flip top mechanism
Heavy duty flip top mechanism

Heavy duty flip top table mechanism for large tops

One hand dual flip handle
One hand dual flip handle

Linkage bar for one handed operation of 2 flip mechanisms on table base pairs

FB
FBAT
FBR

Flip Box Mechanism



Flip Box Mechanism

with Anti-Tip Device



9x9x3/16" bottom reinforcing

plate



FBH

14x14x1/4"

overplate



LB2

Linkage Bar for one-handed operation



Offset column Tbases, Cbases
Offset column Tbases, Cbases

Cbases, offset column Tbases, desk legs, table legs

Double column Tbases
Double column Tbases

2 column table end bases, 2 column t legs

  1221 series         1222 series            1223 series

1.5" dia 16ga.     1.75" dia 14ga.     2" dia 14ga tube

Wire Management

Wire management grommetted wire access holes

Wire Access 01

Laser cut access holes top & bottom. 1-1/2" diameter with rubber grommets.

WA01
Wire management grommetted wire access holes
