1400 series tubular Xbases.

Xbases have been around for so many years that they are considered an industry standard, almost a commodity. You can find many places to purchase them online, "click here to buy" they say. But what are you getting? What are they made of? Where are they made?    IS THAT ALL THERE IS?

We at Soren Holm Incorporated consider them to be anything but a commodity. Every base is manufactured to your specific needs with an option list to satisfy almost every requirement.

click here for top size/base size lookup

Round tube Tbases, table legs, desk legs
1407 3" diameter 14ga column & 2-1/2" dia 14ga legs
1406 3" diameter 14ga column & 2" diameter 14ga legs
1405 3" diameter 14ga column & 1-3/4" diameter 14ga legs
1408 3" diameter 14ga column & leg
1403 2-1/2" diameter 14ga column & 1-3/4" dia leg
1402L 2" diameter 16ga column & leg
1402 2" diameter 14ga column & leg

Standard Details

Welded end caps.

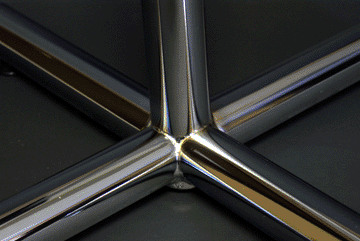

Brazed connections with nickel-silver alloy. No assembly required here.

Refined details.

Laser cut mounting plates welded. No assembly required. Perfect for CNC drilled tops.

1-5/8" diameter glide, 5/16"-18 x 1-1/4" threaded stem.

Welded end caps
Welded end caps

Chrome table legs, metal Tbases, metal table legs

press to zoom
1402 chrome mid closeup.gif
1402 chrome mid closeup.gif

Steel table legs, metal Tbases, metal furniture legs

press to zoom
Powdercoated metal table legs
Powdercoated metal table legs

Metal Tbases, metal table legs, welded metal table legs

press to zoom
Laser cut mounting plates
Laser cut mounting plates

all Welded table bases, welded table legs

press to zoom

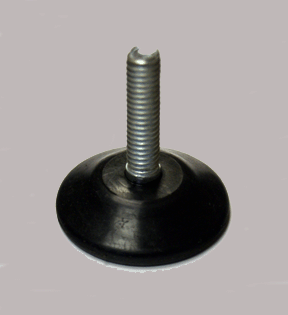

Adjustable table levelers
Adjustable table levelers

Adjustable glides, adjustable table levelers

press to zoom

Optional Details

SG4
BN
CS1
CS2
Plate stiffening gussets
Plate stiffening gussets

Welded plate stiffening gussets, heavy duty mounting plates

press to zoom

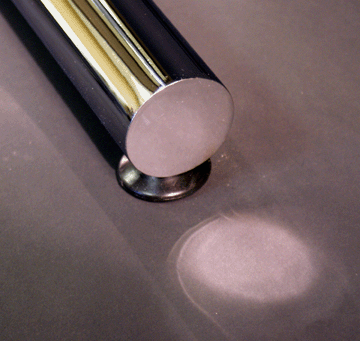

Welded bull nose end caps
Welded bull nose end caps

Welded bull nose end caps

press to zoom

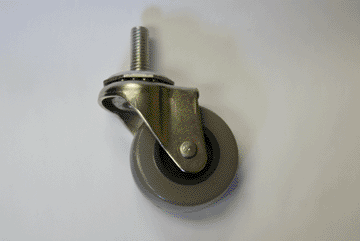

Locking furniture casters
Locking furniture casters

Dual wheel black casters, locking & non-locking

press to zoom
P
T516
T375

Stiffening Gussets 4 Way, welded



Bullnosed End

caps welded



 locking/non-locking Office casters

2" Diameter





CS4
CS3
GL05
SHOX

Mask off column & paint plate.



5/16" or 3/8"

Threaded ferrules welded



1-1/4"  nickel plated glide, 5/16"-18 x 1" threaded stem.

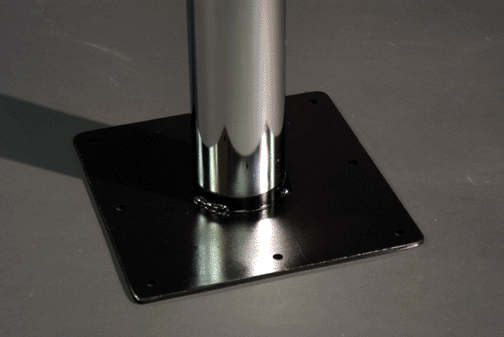

Painted mounting plates optional
Painted mounting plates optional

Finished look under the table, painted mounting plates optional.

press to zoom
Heavy duty threads for casters etc
Heavy duty threads for casters etc

Optional threaded ferrules welded for casters and heavy duty applications

press to zoom
Industrial casters
Industrial casters

Locking & non-locking industrial casters

press to zoom
Optional chrome glides
Optional chrome glides

Optional adjustable chrome glides with silencer

press to zoom

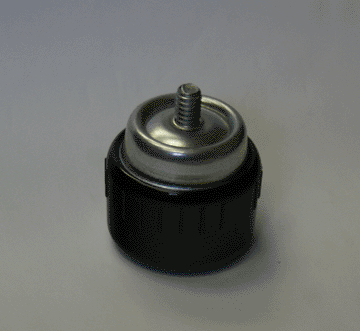

Self leveling glides
Self leveling glides

Table Shox self leveling glides

press to zoom

locking/non-locking Industrial casters

2" diameter



Table  SHOX

auto leveling



FB
FBAT
FBR
FBH
Flip top table mechanism
Flip top table mechanism

Flip top mechanism

press to zoom
Flip top table mechanism anti-tip
Flip top table mechanism anti-tip

Flip top table leg mechanism with anti tip device, heavy duty

press to zoom
Flip top mechanism with stiffener pl
Flip top mechanism with stiffener pl

Heavy duty flip top table mechanism for large tops

press to zoom
Heavy duty flip top mechanism
Heavy duty flip top mechanism

Heavy duty flip top table mechanism for large tops

press to zoom

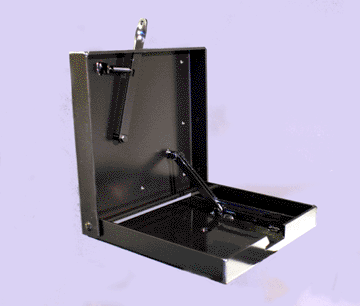

Flip Box Mechanism



Flip Box Mechanism

with Anti-Tip Device



9x9x3/16" bottom reinforcing

plate



14x14x1/4"

overplate




4 column tubular bases

press to zoom

 1441 series                                            1442 series

 1.75" dia 14ga                                2" dia 14ga tube

Wire Management

Wire management grommetted wire access holes

Wire Access 01

Laser cut access holes top & bottom. 1-1/2" diameter with rubber grommets.

WA01
